Score vs Wald tests and sample-size recommendations

Source: vignettes/score-vs-wald-simulation.Rmd
score-vs-wald-simulation.Rmd

Introduction

This vignette compares the Wald and score test implementations in mutze_test() across a factorial grid of negative binomial trial scenarios. It also gives practical recommendations for sample-size calculation when the usual Zhu–Lakkis / Friede–Schmidli / Mutze Wald formula is adequate, when score-test sizing is a useful diagnostic, and when the score test itself is the more important change for Type I error control.

The Wald sizing option in sample_size_nbinom(test_type = "wald") uses the alternative variance \(V_1\) for both the Type I and power components. The score sizing option in sample_size_nbinom(test_type = "score") uses the null variance \(V_0\) for the Type I component and the alternative variance \(V_1\) for the power component:

\[ n_1 = \frac{(z_{\alpha/s}\sqrt{V_0} + z_\beta\sqrt{V_1})^2} {(\theta - \theta_0)^2}. \]

This distinction matters most when the planned final analysis uses a score statistic evaluated under the null, or when finite-sample Type I error control is more important than preserving the historical Wald analysis convention. In the superiority scenarios below, the Wald and score sample sizes are close; the traditional Wald sample size paired with the score test often provides a useful practical margin for power while preserving the score test’s Type I error protection.

The full \(2 \times 2\) factorial comparison is:

Wald-sized trial Score-sized trial
Wald test Wald / Wald Score / Wald
Score test Wald / Score Score / Score

We assess:

  • Type I error control under \(H_0: RR = 1\)
  • Power under \(H_1: RR = 0.70\)

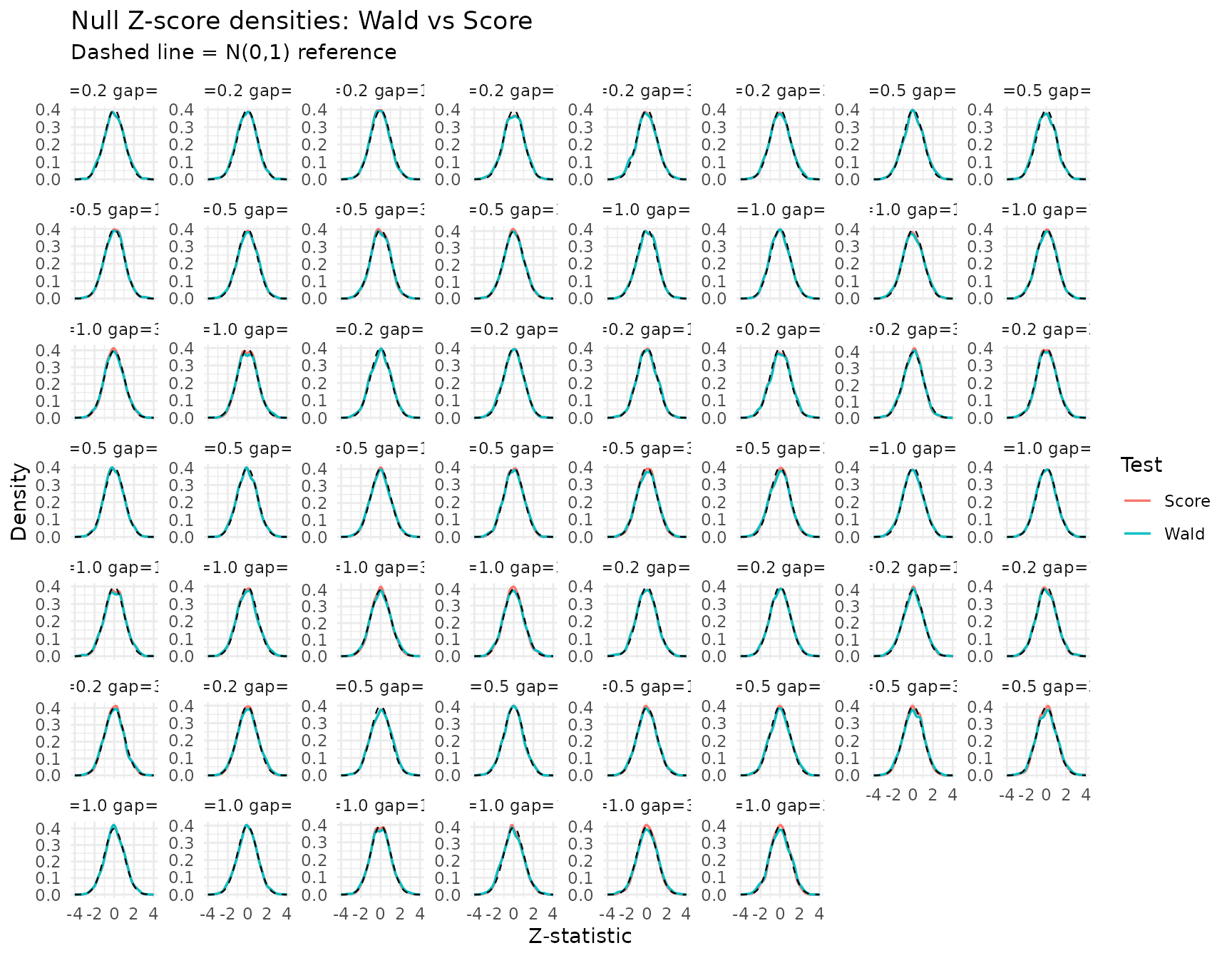

  • Z-score distributions to check asymptotic normality

Tables and figures are rendered from compact precomputed summaries so the CRAN package does not need to bundle the full trial-level simulation output or large interactive widget dependencies.

Results are pre-computed by data-raw/generate_score_sweep.R, summarized for the CRAN vignette cache, and loaded here.

Load pre-computed results

summary_file <- system.file("extdata", "score_sweep_summary.rds",
                            package = "gsDesignNB")
if (summary_file == "" && file.exists("../inst/extdata/score_sweep_summary.rds")) {
  summary_file <- "../inst/extdata/score_sweep_summary.rds"
}

raw_file <- system.file("extdata", "score_sweep_results.rds",
                        package = "gsDesignNB")
if (raw_file == "" && file.exists("../inst/extdata/score_sweep_results.rds")) {
  raw_file <- "../inst/extdata/score_sweep_results.rds"
}

if (summary_file != "") {
  res <- readRDS(summary_file)
  using_summary_cache <- TRUE
} else if (raw_file != "") {
  res <- readRDS(raw_file)
  using_summary_cache <- FALSE
} else {
  stop("Precomputed score sweep summary not found.")
}
config <- res$config
scenarios <- as.data.table(res$scenarios)
base_grid <- as.data.table(res$base_grid)
cat(sprintf(
  "Expanded scenarios: %d | Power sims: %s | Null sims: %s | RR: %.2f | alpha: %.3f\n",
  nrow(scenarios),
  format(config$n_sims_power, big.mark = ","),
  format(config$n_sims_null, big.mark = ","),
  config$rr_power,
  config$alpha
))
#> Expanded scenarios: 54 | Power sims: 3,500 | Null sims: 20,000 | RR: 0.70 | alpha: 0.025
cat(sprintf(
  "Cache: %s\n",
  if (using_summary_cache) "compact summary" else "full raw simulation output"
))
#> Cache: compact summary

Scenario grid

The base scenario grid varies control event rate (\(\lambda_1\)), overdispersion (\(k\)), and minimum inter-event gap. For each base scenario, sample sizes are computed using both the Wald and score variance formulas. In this superiority grid the score-sized trials are equal to or slightly smaller than the Wald-sized trials; score sizing is therefore not a generic “add a few subjects” rule, and the operating characteristics still need to be checked under the planned analysis test.

base_display <- base_grid[, .(
  `Control rate` = lambda1,
  `Dispersion (k)` = k,
  `Event gap (days)` = gap_days,
  `N (Wald sizing)` = n_wald,
  `N (Score sizing)` = n_score,
  `Wald - Score` = n_wald - n_score
)]

knitr::kable(
  base_display,
  caption = "Base scenario grid with sample sizes by method",
  digits = 2
)
Base scenario grid with sample sizes by method
Control rate Dispersion (k) Event gap (days) N (Wald sizing) N (Score sizing) Wald - Score
0.15 0.2 0 304 300 4
0.40 0.2 0 158 156 2
1.00 0.2 0 104 104 0
0.15 0.5 0 406 402 4
0.40 0.5 0 260 258 2
1.00 0.5 0 206 206 0
0.15 1.0 0 576 572 4
0.40 1.0 0 430 428 2
1.00 1.0 0 378 376 2
0.15 0.2 15 320 316 4
0.40 0.2 15 174 172 2
1.00 0.2 15 120 120 0
0.15 0.5 15 428 424 4
0.40 0.5 15 280 278 2
1.00 0.5 15 226 226 0
0.15 1.0 15 606 602 4
0.40 1.0 15 458 458 0
1.00 1.0 15 404 404 0
0.15 0.2 30 338 334 4
0.40 0.2 30 190 188 2
1.00 0.2 30 136 136 0
0.15 0.5 30 448 444 4
0.40 0.5 30 300 298 2
1.00 0.5 30 244 244 0
0.15 1.0 30 634 630 4
0.40 1.0 30 486 484 2
1.00 1.0 30 426 426 0

Type I error comparison

null_dt <- as.data.table(res$null_summary)
null_long <- melt(
  null_dt,
  id.vars = c("lambda1", "k", "gap_days", "n_total", "sizing"),
  measure.vars = c("rate_wald", "rate_score"),
  variable.name = "test",
  value.name = "rejection_rate"
)
null_long[, test := fifelse(test == "rate_wald", "Wald", "Score")]

se_long <- melt(
  null_dt,
  id.vars = c("lambda1", "k", "gap_days", "sizing"),
  measure.vars = c("se_wald", "se_score"),
  variable.name = "test",
  value.name = "se"
)
se_long[, test := fifelse(test == "se_wald", "Wald", "Score")]
null_long <- merge(null_long, se_long,
                   by = c("lambda1", "k", "gap_days", "sizing", "test"))
null_long[, combo := paste0(sizing, "-sized / ", test, " test")]
null_long[, `:=`(
  above_nominal_95 = rejection_rate - 1.96 * se > config$alpha,
  below_nominal_95 = rejection_rate + 1.96 * se < config$alpha
)]
type1_summary <- null_long[, .(
  `Scenarios` = .N,
  `Minimum` = min(rejection_rate),
  `Mean` = mean(rejection_rate),
  `Maximum` = max(rejection_rate),
  `Above nominal beyond MC error` = sum(above_nominal_95),
  `Below nominal beyond MC error` = sum(below_nominal_95)
), by = .(`Sizing` = sizing, `Test` = test)]

knitr::kable(
  type1_summary[order(Sizing, Test)],
  caption = "Type I error synopsis across the scenario grid",
  digits = 4
)
Type I error synopsis across the scenario grid
Sizing Test Scenarios Minimum Mean Maximum Above nominal beyond MC error Below nominal beyond MC error
score Score 27 0.0200 0.0235 0.0264 0 7
score Wald 27 0.0243 0.0274 0.0314 15 0
wald Score 27 0.0200 0.0236 0.0257 0 9
wald Wald 27 0.0244 0.0274 0.0316 13 0
null_display <- null_long[order(lambda1, k, gap_days, sizing, test),
  .(
    `Control rate` = lambda1,
    Dispersion = k,
    `Gap (days)` = gap_days,
    Sizing = sizing,
    N = n_total,
    Test = test,
    `Type I error` = round(rejection_rate, 4),
    SE = round(se, 4)
  )
]

knitr::kable(
  null_display,
  caption = sprintf(
    "Type I error rate: nominal alpha = %.3f, %s null sims/scenario",
    config$alpha,
    format(config$n_sims_null, big.mark = ",")
  )
)
Type I error rate: nominal alpha = 0.025, 20,000 null sims/scenario
Control rate Dispersion Gap (days) Sizing N Test Type I error SE
0.15 0.2 0 score 300 Score 0.0237 0.0011
0.15 0.2 0 score 300 Wald 0.0243 0.0011
0.15 0.2 0 wald 304 Score 0.0254 0.0011
0.15 0.2 0 wald 304 Wald 0.0259 0.0011
0.15 0.2 15 score 316 Score 0.0231 0.0011
0.15 0.2 15 score 316 Wald 0.0254 0.0011
0.15 0.2 15 wald 320 Score 0.0257 0.0011
0.15 0.2 15 wald 320 Wald 0.0276 0.0012
0.15 0.2 30 score 334 Score 0.0239 0.0011
0.15 0.2 30 score 334 Wald 0.0267 0.0011
0.15 0.2 30 wald 338 Score 0.0225 0.0010
0.15 0.2 30 wald 338 Wald 0.0249 0.0011
0.15 0.5 0 score 402 Score 0.0248 0.0011
0.15 0.5 0 score 402 Wald 0.0254 0.0011
0.15 0.5 0 wald 406 Score 0.0249 0.0011
0.15 0.5 0 wald 406 Wald 0.0257 0.0011
0.15 0.5 15 score 424 Score 0.0232 0.0011
0.15 0.5 15 score 424 Wald 0.0259 0.0011
0.15 0.5 15 wald 428 Score 0.0245 0.0011
0.15 0.5 15 wald 428 Wald 0.0271 0.0011
0.15 0.5 30 score 444 Score 0.0222 0.0010
0.15 0.5 30 score 444 Wald 0.0272 0.0011
0.15 0.5 30 wald 448 Score 0.0231 0.0011
0.15 0.5 30 wald 448 Wald 0.0276 0.0012
0.15 1.0 0 score 572 Score 0.0253 0.0011
0.15 1.0 0 score 572 Wald 0.0262 0.0011
0.15 1.0 0 wald 576 Score 0.0257 0.0011
0.15 1.0 0 wald 576 Wald 0.0267 0.0011
0.15 1.0 15 score 602 Score 0.0236 0.0011
0.15 1.0 15 score 602 Wald 0.0281 0.0012
0.15 1.0 15 wald 606 Score 0.0257 0.0011
0.15 1.0 15 wald 606 Wald 0.0295 0.0012
0.15 1.0 30 score 630 Score 0.0249 0.0011
0.15 1.0 30 score 630 Wald 0.0314 0.0012
0.15 1.0 30 wald 634 Score 0.0228 0.0011
0.15 1.0 30 wald 634 Wald 0.0296 0.0012
0.40 0.2 0 score 156 Score 0.0246 0.0011
0.40 0.2 0 score 156 Wald 0.0258 0.0011
0.40 0.2 0 wald 158 Score 0.0240 0.0011
0.40 0.2 0 wald 158 Wald 0.0261 0.0011
0.40 0.2 15 score 172 Score 0.0242 0.0011
0.40 0.2 15 score 172 Wald 0.0279 0.0012
0.40 0.2 15 wald 174 Score 0.0252 0.0011
0.40 0.2 15 wald 174 Wald 0.0278 0.0012
0.40 0.2 30 score 188 Score 0.0233 0.0011
0.40 0.2 30 score 188 Wald 0.0280 0.0012
0.40 0.2 30 wald 190 Score 0.0243 0.0011
0.40 0.2 30 wald 190 Wald 0.0289 0.0012
0.40 0.5 0 score 258 Score 0.0264 0.0011
0.40 0.5 0 score 258 Wald 0.0278 0.0012
0.40 0.5 0 wald 260 Score 0.0252 0.0011
0.40 0.5 0 wald 260 Wald 0.0265 0.0011
0.40 0.5 15 score 278 Score 0.0203 0.0010
0.40 0.5 15 score 278 Wald 0.0248 0.0011
0.40 0.5 15 wald 280 Score 0.0220 0.0010
0.40 0.5 15 wald 280 Wald 0.0252 0.0011
0.40 0.5 30 score 298 Score 0.0226 0.0011
0.40 0.5 30 score 298 Wald 0.0291 0.0012
0.40 0.5 30 wald 300 Score 0.0226 0.0010
0.40 0.5 30 wald 300 Wald 0.0296 0.0012
0.40 1.0 0 score 428 Score 0.0255 0.0011
0.40 1.0 0 score 428 Wald 0.0262 0.0011
0.40 1.0 0 wald 430 Score 0.0249 0.0011
0.40 1.0 0 wald 430 Wald 0.0261 0.0011
0.40 1.0 15 score 458 Score 0.0242 0.0011
0.40 1.0 15 score 458 Wald 0.0293 0.0012
0.40 1.0 15 wald 458 Score 0.0230 0.0011
0.40 1.0 15 wald 458 Wald 0.0274 0.0012
0.40 1.0 30 score 484 Score 0.0200 0.0010
0.40 1.0 30 score 484 Wald 0.0284 0.0012
0.40 1.0 30 wald 486 Score 0.0216 0.0010
0.40 1.0 30 wald 486 Wald 0.0301 0.0012
1.00 0.2 0 score 104 Score 0.0253 0.0011
1.00 0.2 0 score 104 Wald 0.0279 0.0012
1.00 0.2 0 wald 104 Score 0.0245 0.0011
1.00 0.2 0 wald 104 Wald 0.0271 0.0011
1.00 0.2 15 score 120 Score 0.0234 0.0011
1.00 0.2 15 score 120 Wald 0.0289 0.0012
1.00 0.2 15 wald 120 Score 0.0253 0.0011
1.00 0.2 15 wald 120 Wald 0.0305 0.0012
1.00 0.2 30 score 136 Score 0.0231 0.0011
1.00 0.2 30 score 136 Wald 0.0306 0.0012
1.00 0.2 30 wald 136 Score 0.0200 0.0010
1.00 0.2 30 wald 136 Wald 0.0263 0.0011
1.00 0.5 0 score 206 Score 0.0240 0.0011
1.00 0.5 0 score 206 Wald 0.0256 0.0011
1.00 0.5 0 wald 206 Score 0.0230 0.0011
1.00 0.5 0 wald 206 Wald 0.0244 0.0011
1.00 0.5 15 score 226 Score 0.0227 0.0011
1.00 0.5 15 score 226 Wald 0.0280 0.0012
1.00 0.5 15 wald 226 Score 0.0214 0.0010
1.00 0.5 15 wald 226 Wald 0.0267 0.0011
1.00 0.5 30 score 244 Score 0.0214 0.0010
1.00 0.5 30 score 244 Wald 0.0295 0.0012
1.00 0.5 30 wald 244 Score 0.0210 0.0010
1.00 0.5 30 wald 244 Wald 0.0277 0.0012
1.00 1.0 0 score 376 Score 0.0244 0.0011
1.00 1.0 0 score 376 Wald 0.0253 0.0011
1.00 1.0 0 wald 378 Score 0.0249 0.0011
1.00 1.0 0 wald 378 Wald 0.0260 0.0011
1.00 1.0 15 score 404 Score 0.0231 0.0011
1.00 1.0 15 score 404 Wald 0.0284 0.0012
1.00 1.0 15 wald 404 Score 0.0232 0.0011
1.00 1.0 15 wald 404 Wald 0.0285 0.0012
1.00 1.0 30 score 426 Score 0.0206 0.0010
1.00 1.0 30 score 426 Wald 0.0278 0.0012
1.00 1.0 30 wald 426 Score 0.0216 0.0010
1.00 1.0 30 wald 426 Wald 0.0316 0.0012

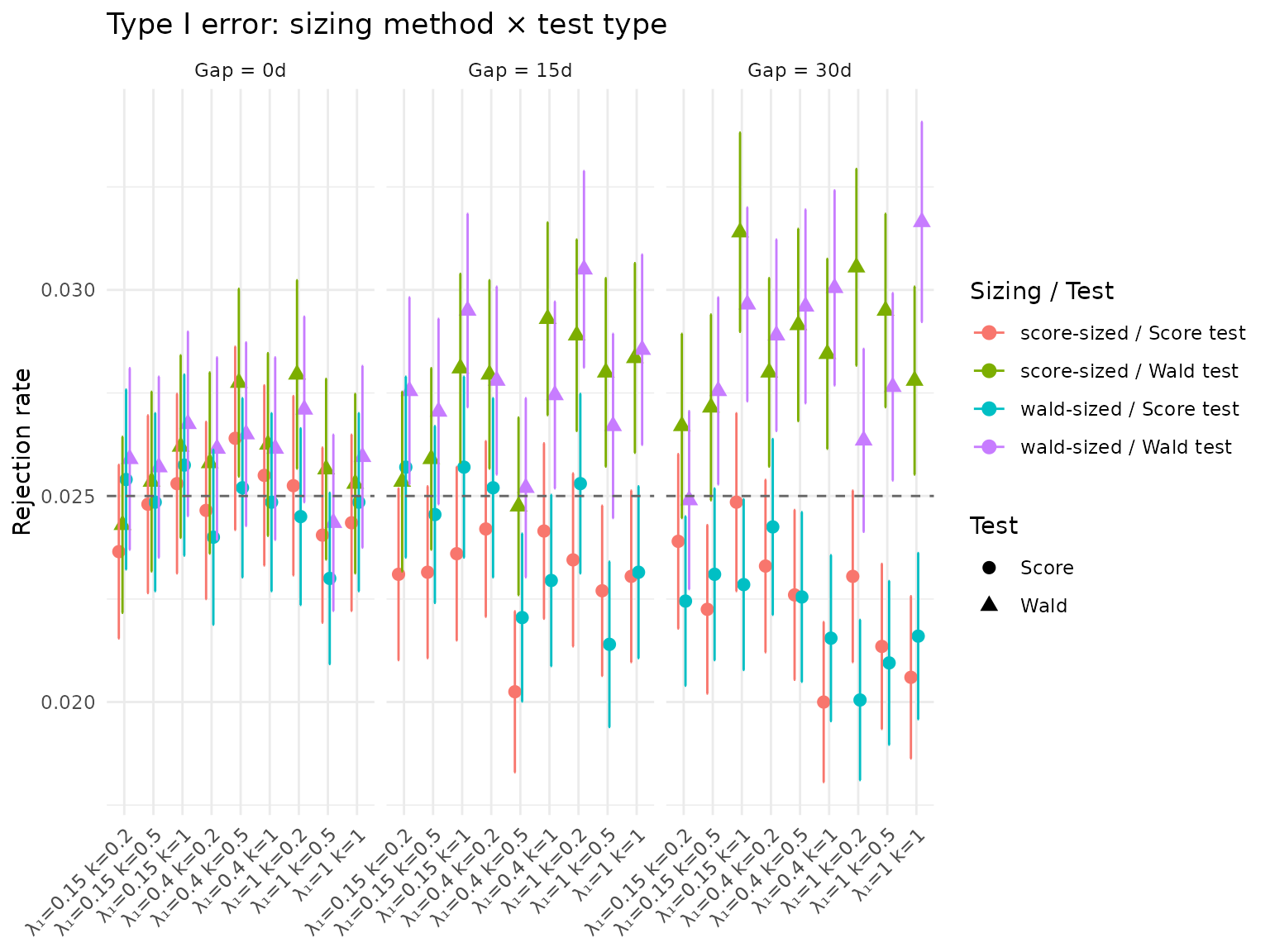

null_long[, scenario := paste0("λ₁=", lambda1, " k=", k)]

p_null <- ggplot(null_long,
  aes(x = scenario, y = rejection_rate,
      color = combo, shape = test)) +
  geom_point(size = 2.5, position = position_dodge(width = 0.5)) +
  geom_errorbar(aes(ymin = rejection_rate - 1.96 * se,
                     ymax = rejection_rate + 1.96 * se),
                width = 0.2, position = position_dodge(width = 0.5)) +
  geom_hline(yintercept = config$alpha, linetype = "dashed", color = "grey40") +
  facet_wrap(~ paste0("Gap = ", gap_days, "d")) +
  labs(
    title = "Type I error: sizing method × test type",
    x = NULL, y = "Rejection rate",
    color = "Sizing / Test", shape = "Test"
  ) +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1))

p_null

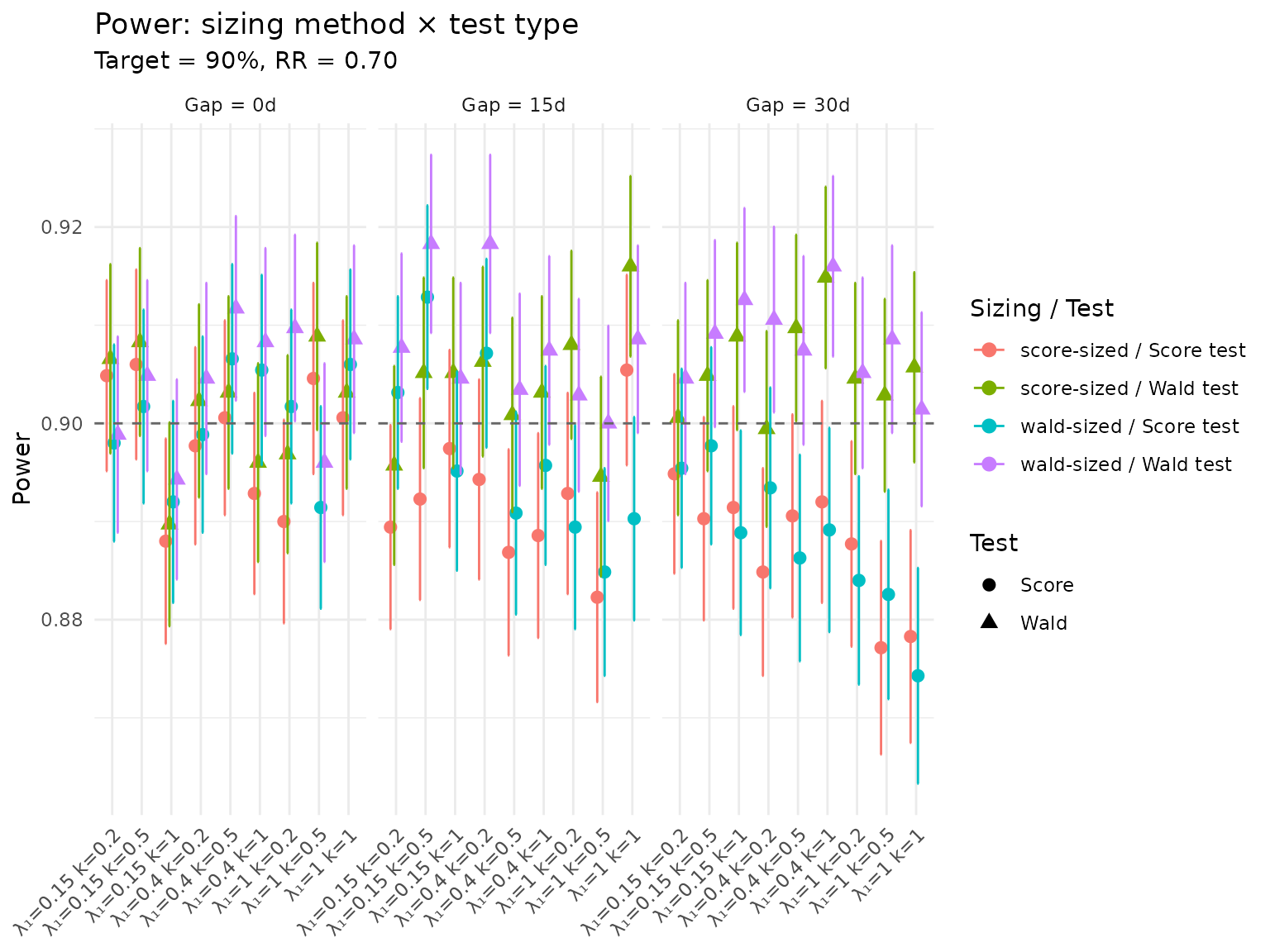

Power comparison

power_dt <- as.data.table(res$power_summary)
power_long <- melt(
  power_dt,
  id.vars = c("lambda1", "k", "gap_days", "n_total", "sizing"),
  measure.vars = c("rate_wald", "rate_score"),
  variable.name = "test",
  value.name = "power"
)
power_long[, test := fifelse(test == "rate_wald", "Wald", "Score")]

se_power <- melt(
  power_dt,
  id.vars = c("lambda1", "k", "gap_days", "sizing"),
  measure.vars = c("se_wald", "se_score"),
  variable.name = "test",
  value.name = "se"
)
se_power[, test := fifelse(test == "se_wald", "Wald", "Score")]
power_long <- merge(power_long, se_power,
                    by = c("lambda1", "k", "gap_days", "sizing", "test"))
power_long[, combo := paste0(sizing, "-sized / ", test, " test")]
power_summary <- power_long[, .(
  `Scenarios` = .N,
  `Minimum` = min(power),
  `Mean` = mean(power),
  `Maximum` = max(power),
  `Below 90%` = sum(power < config$power_target)
), by = .(`Sizing` = sizing, `Test` = test)]

knitr::kable(
  power_summary[order(Sizing, Test)],
  caption = "Power synopsis across the scenario grid",
  digits = 4
)
Power synopsis across the scenario grid
Sizing Test Scenarios Minimum Mean Maximum Below 90%
score Score 27 0.8771 0.8927 0.9060 21
score Wald 27 0.8897 0.9037 0.9160 6
wald Score 27 0.8743 0.8949 0.9129 19
wald Wald 27 0.8943 0.9068 0.9183 3
power_display <- power_long[order(lambda1, k, gap_days, sizing, test),
  .(
    `Control rate` = lambda1,
    Dispersion = k,
    `Gap (days)` = gap_days,
    Sizing = sizing,
    N = n_total,
    Test = test,
    Power = round(power, 4),
    SE = round(se, 4)
  )
]

knitr::kable(
  power_display,
  caption = sprintf(
    "Power: RR = %.2f, %s power sims/scenario",
    config$rr_power,
    format(config$n_sims_power, big.mark = ",")
  )
)
Power: RR = 0.70, 3,500 power sims/scenario
Control rate Dispersion Gap (days) Sizing N Test Power SE
0.15 0.2 0 score 300 Score 0.9049 0.0050
0.15 0.2 0 score 300 Wald 0.9066 0.0049
0.15 0.2 0 wald 304 Score 0.8980 0.0051
0.15 0.2 0 wald 304 Wald 0.8989 0.0051
0.15 0.2 15 score 316 Score 0.8894 0.0053
0.15 0.2 15 score 316 Wald 0.8957 0.0052
0.15 0.2 15 wald 320 Score 0.9031 0.0050
0.15 0.2 15 wald 320 Wald 0.9077 0.0049
0.15 0.2 30 score 334 Score 0.8949 0.0052
0.15 0.2 30 score 334 Wald 0.9006 0.0051
0.15 0.2 30 wald 338 Score 0.8954 0.0052
0.15 0.2 30 wald 338 Wald 0.9046 0.0050
0.15 0.5 0 score 402 Score 0.9060 0.0049
0.15 0.5 0 score 402 Wald 0.9083 0.0049
0.15 0.5 0 wald 406 Score 0.9017 0.0050
0.15 0.5 0 wald 406 Wald 0.9049 0.0050
0.15 0.5 15 score 424 Score 0.8923 0.0052
0.15 0.5 15 score 424 Wald 0.9051 0.0050
0.15 0.5 15 wald 428 Score 0.9129 0.0048
0.15 0.5 15 wald 428 Wald 0.9183 0.0046
0.15 0.5 30 score 444 Score 0.8903 0.0053
0.15 0.5 30 score 444 Wald 0.9049 0.0050
0.15 0.5 30 wald 448 Score 0.8977 0.0051
0.15 0.5 30 wald 448 Wald 0.9091 0.0049
0.15 1.0 0 score 572 Score 0.8880 0.0053
0.15 1.0 0 score 572 Wald 0.8897 0.0053
0.15 1.0 0 wald 576 Score 0.8920 0.0052
0.15 1.0 0 wald 576 Wald 0.8943 0.0052
0.15 1.0 15 score 602 Score 0.8974 0.0051
0.15 1.0 15 score 602 Wald 0.9051 0.0050
0.15 1.0 15 wald 606 Score 0.8951 0.0052
0.15 1.0 15 wald 606 Wald 0.9046 0.0050
0.15 1.0 30 score 630 Score 0.8914 0.0053
0.15 1.0 30 score 630 Wald 0.9089 0.0049
0.15 1.0 30 wald 634 Score 0.8889 0.0053
0.15 1.0 30 wald 634 Wald 0.9126 0.0048
0.40 0.2 0 score 156 Score 0.8977 0.0051
0.40 0.2 0 score 156 Wald 0.9023 0.0050
0.40 0.2 0 wald 158 Score 0.8989 0.0051
0.40 0.2 0 wald 158 Wald 0.9046 0.0050
0.40 0.2 15 score 172 Score 0.8943 0.0052
0.40 0.2 15 score 172 Wald 0.9063 0.0049
0.40 0.2 15 wald 174 Score 0.9071 0.0049
0.40 0.2 15 wald 174 Wald 0.9183 0.0046
0.40 0.2 30 score 188 Score 0.8849 0.0054
0.40 0.2 30 score 188 Wald 0.8994 0.0051
0.40 0.2 30 wald 190 Score 0.8934 0.0052
0.40 0.2 30 wald 190 Wald 0.9106 0.0048
0.40 0.5 0 score 258 Score 0.9006 0.0051
0.40 0.5 0 score 258 Wald 0.9031 0.0050
0.40 0.5 0 wald 260 Score 0.9066 0.0049
0.40 0.5 0 wald 260 Wald 0.9117 0.0048
0.40 0.5 15 score 278 Score 0.8869 0.0054
0.40 0.5 15 score 278 Wald 0.9009 0.0051
0.40 0.5 15 wald 280 Score 0.8909 0.0053
0.40 0.5 15 wald 280 Wald 0.9034 0.0050
0.40 0.5 30 score 298 Score 0.8906 0.0053
0.40 0.5 30 score 298 Wald 0.9097 0.0048
0.40 0.5 30 wald 300 Score 0.8863 0.0054
0.40 0.5 30 wald 300 Wald 0.9074 0.0049
0.40 1.0 0 score 428 Score 0.8929 0.0052
0.40 1.0 0 score 428 Wald 0.8960 0.0052
0.40 1.0 0 wald 430 Score 0.9054 0.0049
0.40 1.0 0 wald 430 Wald 0.9083 0.0049
0.40 1.0 15 score 458 Score 0.8886 0.0053
0.40 1.0 15 score 458 Wald 0.9031 0.0050
0.40 1.0 15 wald 458 Score 0.8957 0.0052
0.40 1.0 15 wald 458 Wald 0.9074 0.0049
0.40 1.0 30 score 484 Score 0.8920 0.0052
0.40 1.0 30 score 484 Wald 0.9149 0.0047
0.40 1.0 30 wald 486 Score 0.8891 0.0053
0.40 1.0 30 wald 486 Wald 0.9160 0.0047
1.00 0.2 0 score 104 Score 0.8900 0.0053
1.00 0.2 0 score 104 Wald 0.8969 0.0051
1.00 0.2 0 wald 104 Score 0.9017 0.0050
1.00 0.2 0 wald 104 Wald 0.9097 0.0048
1.00 0.2 15 score 120 Score 0.8929 0.0052
1.00 0.2 15 score 120 Wald 0.9080 0.0049
1.00 0.2 15 wald 120 Score 0.8894 0.0053
1.00 0.2 15 wald 120 Wald 0.9029 0.0050
1.00 0.2 30 score 136 Score 0.8877 0.0053
1.00 0.2 30 score 136 Wald 0.9046 0.0050
1.00 0.2 30 wald 136 Score 0.8840 0.0054
1.00 0.2 30 wald 136 Wald 0.9051 0.0050
1.00 0.5 0 score 206 Score 0.9046 0.0050
1.00 0.5 0 score 206 Wald 0.9089 0.0049
1.00 0.5 0 wald 206 Score 0.8914 0.0053
1.00 0.5 0 wald 206 Wald 0.8960 0.0052
1.00 0.5 15 score 226 Score 0.8823 0.0054
1.00 0.5 15 score 226 Wald 0.8946 0.0052
1.00 0.5 15 wald 226 Score 0.8849 0.0054
1.00 0.5 15 wald 226 Wald 0.9000 0.0051
1.00 0.5 30 score 244 Score 0.8771 0.0055
1.00 0.5 30 score 244 Wald 0.9029 0.0050
1.00 0.5 30 wald 244 Score 0.8826 0.0054
1.00 0.5 30 wald 244 Wald 0.9086 0.0049
1.00 1.0 0 score 376 Score 0.9006 0.0051
1.00 1.0 0 score 376 Wald 0.9031 0.0050
1.00 1.0 0 wald 378 Score 0.9060 0.0049
1.00 1.0 0 wald 378 Wald 0.9086 0.0049
1.00 1.0 15 score 404 Score 0.9054 0.0049
1.00 1.0 15 score 404 Wald 0.9160 0.0047
1.00 1.0 15 wald 404 Score 0.8903 0.0053
1.00 1.0 15 wald 404 Wald 0.9086 0.0049
1.00 1.0 30 score 426 Score 0.8783 0.0055
1.00 1.0 30 score 426 Wald 0.9057 0.0049
1.00 1.0 30 wald 426 Score 0.8743 0.0056
1.00 1.0 30 wald 426 Wald 0.9014 0.0050
power_long[, scenario := paste0("λ₁=", lambda1, " k=", k)]

p_power <- ggplot(power_long,
  aes(x = scenario, y = power,
      color = combo, shape = test)) +
  geom_point(size = 2.5, position = position_dodge(width = 0.5)) +
  geom_errorbar(aes(ymin = power - 1.96 * se,
                     ymax = power + 1.96 * se),
                width = 0.2, position = position_dodge(width = 0.5)) +
  geom_hline(yintercept = config$power_target, linetype = "dashed", color = "grey40") +
  facet_wrap(~ paste0("Gap = ", gap_days, "d")) +
  labs(
    title = "Power: sizing method × test type",
    subtitle = sprintf("Target = %.0f%%, RR = %.2f",
                        100 * config$power_target, config$rr_power),
    x = NULL, y = "Power",
    color = "Sizing / Test", shape = "Test"
  ) +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1))

p_power

Z-score density comparison (null simulations)

Under \(H_0\), the Z-statistics should follow \(N(0, 1)\) if the asymptotic approximation holds.

if (!is.null(res$z_density_null)) {
  z_density_null <- as.data.table(res$z_density_null)
} else {
  z_null <- as.data.table(res$z_sample_null)
  sc_info <- data.table(
    scenario_id = seq_len(nrow(scenarios)),
    scenarios[, .(lambda1, k, gap_days, sizing)]
  )
  z_null <- merge(z_null, sc_info, by = "scenario_id")
  z_null[, label := sprintf("l1=%.2f k=%.1f gap=%dd (%s)",
                             lambda1, k, gap_days, sizing)]

  z_null_long <- melt(
    z_null,
    id.vars = c("scenario_id", "label", "sizing"),
    measure.vars = c("z_wald", "z_score"),
    variable.name = "test",
    value.name = "z"
  )
  z_null_long[, test := fifelse(test == "z_wald", "Wald", "Score")]
  z_null_long <- z_null_long[is.finite(z)]

  z_density_null <- z_null_long[, {
    dens <- stats::density(z, from = -4, to = 4, n = 128)
    .(z = dens$x, density = dens$y)
  }, by = .(scenario_id, label, sizing, test)]
}

normal_curve <- data.table(
  z = seq(-4, 4, length.out = 128),
  density = dnorm(seq(-4, 4, length.out = 128))
)

p_z <- ggplot(z_density_null, aes(x = z, y = density, color = test)) +
  geom_line(linewidth = 0.6) +
  geom_line(data = normal_curve, aes(x = z, y = density),
            inherit.aes = FALSE, color = "black", linetype = "dashed",
            linewidth = 0.4) +
  facet_wrap(~ label, scales = "free_y") +
  labs(
    title = "Null Z-score densities: Wald vs Score",
    subtitle = "Dashed line = N(0,1) reference",
    x = "Z-statistic", y = "Density",
    color = "Test"
  ) +
  theme_minimal() +
  coord_cartesian(xlim = c(-4, 4))

p_z

Fallback method frequency

When the negative binomial MLE fails to converge or yields non-overdispersed estimates, mutze_test() falls back to Poisson or method-of-moments estimation.

null_fb <- as.data.table(res$null_summary)
fb_display <- null_fb[, .(
  `Control rate` = lambda1,
  Dispersion = k,
  `Gap (days)` = gap_days,
  Sizing = sizing,
  `Poisson (Wald)` = round(pct_fallback_poisson_wald, 1),
  `MoM (Wald)` = round(pct_fallback_mom_wald, 1),
  `Poisson (Score)` = round(pct_fallback_poisson_score, 1),
  `MoM (Score)` = round(pct_fallback_mom_score, 1)
)]

knitr::kable(
  fb_display,
  caption = "Fallback method frequency (%, null sims)",
  digits = 1
)
Fallback method frequency (%, null sims)
Control rate Dispersion Gap (days) Sizing Poisson (Wald) MoM (Wald) Poisson (Score) MoM (Score)
0.1 0.2 0 wald 0.2 0.0 0.2 0.0
0.4 0.2 0 wald 0.0 0.0 0.0 0.0
1.0 0.2 0 wald 0.0 0.0 0.0 0.0
0.1 0.5 0 wald 0.0 0.0 0.0 0.0
0.4 0.5 0 wald 0.0 0.0 0.0 0.0
1.0 0.5 0 wald 0.0 0.0 0.0 0.0
0.1 1.0 0 wald 0.0 0.0 0.0 0.0
0.4 1.0 0 wald 0.0 0.0 0.0 0.0
1.0 1.0 0 wald 0.0 0.0 0.0 0.0
0.1 0.2 15 wald 0.4 0.1 0.4 0.1
0.4 0.2 15 wald 0.0 0.1 0.0 0.1
1.0 0.2 15 wald 0.0 0.0 0.0 0.0
0.1 0.5 15 wald 0.0 0.1 0.0 0.1
0.4 0.5 15 wald 0.0 0.1 0.0 0.1
1.0 0.5 15 wald 0.0 0.1 0.0 0.1
0.1 1.0 15 wald 0.0 0.2 0.0 0.2
0.4 1.0 15 wald 0.0 0.1 0.0 0.1
1.0 1.0 15 wald 0.0 0.1 0.0 0.1
0.1 0.2 30 wald 0.5 0.2 0.5 0.2
0.4 0.2 30 wald 0.0 0.1 0.0 0.1
1.0 0.2 30 wald 0.0 0.1 0.0 0.1
0.1 0.5 30 wald 0.0 0.2 0.0 0.2
0.4 0.5 30 wald 0.0 0.2 0.0 0.1
1.0 0.5 30 wald 0.0 0.1 0.0 0.1
0.1 1.0 30 wald 0.0 0.2 0.0 0.2
0.4 1.0 30 wald 0.0 0.2 0.0 0.2
1.0 1.0 30 wald 0.0 0.2 0.0 0.2
0.1 0.2 0 score 0.2 0.0 0.2 0.0
0.4 0.2 0 score 0.0 0.0 0.0 0.0
1.0 0.2 0 score 0.0 0.0 0.0 0.0
0.1 0.5 0 score 0.0 0.0 0.0 0.0
0.4 0.5 0 score 0.0 0.0 0.0 0.0
1.0 0.5 0 score 0.0 0.0 0.0 0.0
0.1 1.0 0 score 0.0 0.0 0.0 0.0
0.4 1.0 0 score 0.0 0.0 0.0 0.0
1.0 1.0 0 score 0.0 0.0 0.0 0.0
0.1 0.2 15 score 0.4 0.1 0.3 0.1
0.4 0.2 15 score 0.0 0.1 0.0 0.1
1.0 0.2 15 score 0.0 0.0 0.0 0.0
0.1 0.5 15 score 0.0 0.1 0.0 0.1
0.4 0.5 15 score 0.0 0.1 0.0 0.1
1.0 0.5 15 score 0.0 0.0 0.0 0.0
0.1 1.0 15 score 0.0 0.1 0.0 0.1
0.4 1.0 15 score 0.0 0.1 0.0 0.1
1.0 1.0 15 score 0.0 0.1 0.0 0.1
0.1 0.2 30 score 0.5 0.1 0.4 0.1
0.4 0.2 30 score 0.0 0.1 0.0 0.1
1.0 0.2 30 score 0.0 0.1 0.0 0.1
0.1 0.5 30 score 0.0 0.2 0.0 0.2
0.4 0.5 30 score 0.0 0.1 0.0 0.1
1.0 0.5 30 score 0.0 0.1 0.0 0.1
0.1 1.0 30 score 0.0 0.2 0.0 0.2
0.4 1.0 30 score 0.0 0.2 0.0 0.2
1.0 1.0 30 score 0.0 0.2 0.0 0.2

Summary

  • The choice of final analysis test matters more than the choice of Wald versus score sizing in this grid. Wald and score sample sizes differ by at most four subjects, while the null rejection pattern changes materially when the test statistic changes.
  • The Wald test is mildly anti-conservative in several finite-sample scenarios. Across the grid, its empirical Type I error ranges from 0.0243 to 0.0316, and many Wald cells are above nominal beyond Monte Carlo error.
  • The score test provides better Type I protection. Its empirical Type I error ranges from 0.02 to 0.0264; no score-test cell is above nominal beyond Monte Carlo error, although several are conservatively below nominal.
  • Use the Zhu–Lakkis / Friede–Schmidli / Mutze Wald formula when the planned primary analysis is the Wald log-rate-ratio test. It is also a reasonable practical baseline when the planned primary analysis is the score test, because in this superiority grid Wald sizing gives the score test a small sample-size margin.
  • Move to the score-test workflow when Type I error preservation is the primary concern, especially for lower-information designs, high dispersion, event gaps, non-inferiority or super-superiority margins, or adaptive/group sequential settings. In that workflow, analyze and simulate with mutze_test(test_type = "score"), sim_gs_nbinom(test_type = "score"), or sim_ssr_nbinom(test_type = "score"); compare Wald and score sizing rather than assuming the two-variance score formula will automatically deliver nominal power.
  • Score-test power is slightly conservative in this grid. If the score test is the planned primary analysis, verify power by simulation and consider retaining Wald sizing, increasing the target power, or adding a modest information margin before finalizing the protocol.
